Description

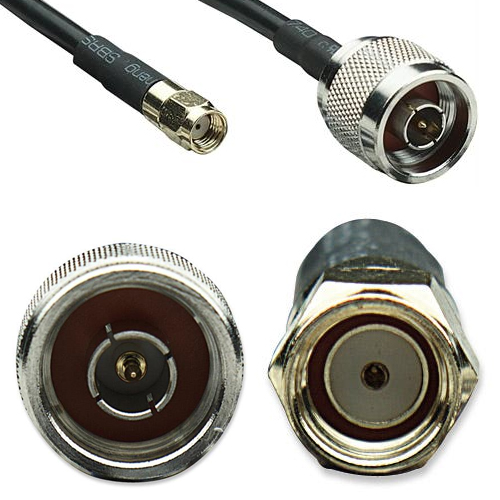

Intellinet Antenna Cable CFD200 N Type Male Connector and RP SMA Female Connector- 1.8 metre Cable Length, Strand bare copper wire, outside diameter (O.D.): 0.8 mm +/- 0.2 mm , Insulation: Solid Polyethylene, outside diameter (O.D.): 2.9 mm +/- 0.1 mm, RG-58, 0.25 dB loss per ), Poly Bag, 1 Year Limited Warranty
Specifications
• Stock Code 522137
• Description Intellinet Antenna Cable RG 58/U CFD200 ,N-type Male to RP SMA Female Connector 1.8 metre
• Signal loss of 0.25 dB per feet
• N-type Male/RP-SMA Female connectors
• Impedance: 50 Ohms (+/- 3 Ohms)
• Centre conductor: Strand bare copper wire, outside diameter (O.D.): 0.8 mm +/- 0.2 mm
• Insulation: Solid Polyethylene, outside diameter (O.D.): 2.9 mm +/- 0.1 mm
• Shield: Bare copper wire, outside diameter (O.D.): 3.12 mm +/- 0.008 mm
• Teflon jacket: PVC, outside diameter (O.D.): 5 mm +/- 0.01 mm
Product Overview
The Intellinet Antenna Cable CFD200 ,N-type Male to RP SMA Female Connector 1.8 metre could be used to connect routers, PCI cards, access point, etc. It will bring you much convenience. Very easy to use
The Intellinet Antenna Cable CFD200 ,N-type Male to RP SMA Female Connector 1.8 metre could be used to connect routers, PCI cards, access point, etc. It will bring you much convenience. Very easy to use
Highlights
• N-Type Male to RP SMA Female Connector
• Fit for : Router, PCI Card, Access Point;
• Cable Length : 1.8 Metres
• N-Type Male to RP SMA Female Connector
• Fit for : Router, PCI Card, Access Point;
• Cable Length : 1.8 Metres
Specifications
• Stock Code 522137
• Description Intellinet Antenna Cable RG 58/U CFD200 ,N-type Male to RP SMA Female Connector 1.8 metre
• Signal loss of 0.25 dB per feet
• N-type Male/RP-SMA Female connectors
• Impedance: 50 Ohms (+/- 3 Ohms)
• Centre conductor: Strand bare copper wire, outside diameter (O.D.): 0.8 mm +/- 0.2 mm
• Insulation: Solid Polyethylene, outside diameter (O.D.): 2.9 mm +/- 0.1 mm
• Shield: Bare copper wire, outside diameter (O.D.): 3.12 mm +/- 0.008 mm
• Teflon jacket: PVC, outside diameter (O.D.): 5 mm +/- 0.01 mm
