Description

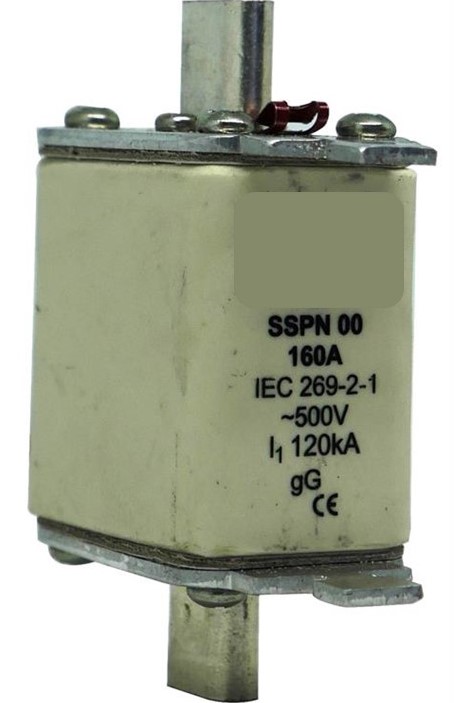

Solarix 500V 160A NH00 Ceramic Din Fuse- Basic function Fuse link, AC Voltage 500 VAC, DC Voltage 250 VDC, Body Material Ceramic, Contact Materials Copper, Silver-Plated, Construction size NH00, Breaking Capacity 120 kA, Colour Beige,Retail Box, No warranty
Product Overview
The Solarix 500V 160A NH00 Ceramic Din Fuse is designed to protect cables and equipment and can interrupt any current surges between the batteries and the inverter from the lowest fusing current up to the breaking capacity, and so can be used alone as protection. It is also designed to protect electrical devices and industrial set-ups from the electrodynamics effects of very high short-circuit currents.
Requires A Fuse Holder Sold Separately
Specifications
• Stock Code 160NHG00B
• Description 500V 160A NH00 Ceramic Din Fuse
• Basic Function NH Fuse Link
• Nominal Rated Current 160A
• Shape Square Body With Knife Blade Contacts
• AC Voltage 500 VAC
• DC Voltage 250 VDC
• Breaking Capacity 120 kA
• Body Material Ceramic
• Contact Materials Copper, Silver-Plated
• Construction Size NH00
• Requires A Fuse Holder Sold Separately
• Colour Beige
• Stock Code 160NHG00B
• Description 500V 160A NH00 Ceramic Din Fuse
• Basic Function NH Fuse Link
• Nominal Rated Current 160A
• Shape Square Body With Knife Blade Contacts
• AC Voltage 500 VAC
• DC Voltage 250 VDC
• Breaking Capacity 120 kA
• Body Material Ceramic
• Contact Materials Copper, Silver-Plated
• Construction Size NH00
• Requires A Fuse Holder Sold Separately
• Colour Beige
NOTE: Items are only transferred from the warehouse and shipped for delivery upon order confirmation and payment. Items deemed with incorrect listing prices will be cancelled and refunded immediately.
