Description
Solarix M6 Insulated Ring Solar PV Terminal Connector Pack of 4-M6 Stud Size, 4mm² to 6mm² Solar PV Cable, Also Known As A Ring Connector Or Cable Lug, Yellow Sleeve, Sold As Pack Of 4, Retail Box , No warranty
Product Overview

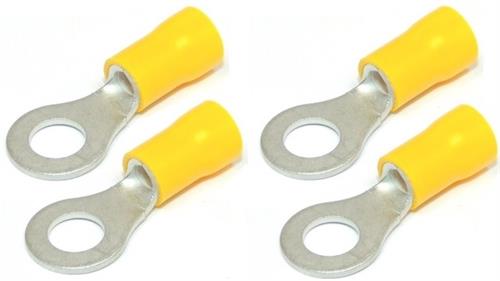

The Solarix M6 Insulated Ring Solar PV Terminal Connector also known as a ring connector or cable lugs. Ring crimp terminals are used for connecting an electrical cable or Solar PV wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive tin plated for maximum electrical conductivity and corrosion resistance. A yellow colour coded vinyl insulation provides protection to the terminal Once correctly crimped onto a wire or cable this ring terminal will provide a secure and reliable connection. Sold As Pack Of 4
The Solarix M6 Insulated Ring Solar PV Terminal Connector also known as a ring connector or cable lugs. Ring crimp terminals are used for connecting an electrical cable or Solar PV wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive tin plated for maximum electrical conductivity and corrosion resistance. A yellow colour coded vinyl insulation provides protection to the terminal Once correctly crimped onto a wire or cable this ring terminal will provide a secure and reliable connection. Sold As Pack Of 4
Highlights
• Solarix M6 Insulated Ring Solar PV Terminal Connector
• M6 Stud Size
• Used on 4mm² to 6mm² Solar PV Cables
• Inner Ring Diameter 6.35mm
• Outer Ring Diameter 10mm
• Also Known As A Ring Connector Or Cable Lug
• Yellow Sleeve
• Sold As Pack Of 4
• Solarix M6 Insulated Ring Solar PV Terminal Connector
• M6 Stud Size
• Used on 4mm² to 6mm² Solar PV Cables
• Inner Ring Diameter 6.35mm
• Outer Ring Diameter 10mm
• Also Known As A Ring Connector Or Cable Lug
• Yellow Sleeve
• Sold As Pack Of 4
Specifications
• Stock code SOLLR40064PCK
• Solarix M6 Insulated Ring Solar PV Terminal Connector Pack of 4
• Insulation Material Yellow PVC
• Inner Ring Diameter 6.35mm
• Outer Ring Diameter 10mm
• Minimum Wire Size mm² 2.5mm²
• Maximum Wire Size mm² 6mm²
• Minimum Wire Size AWG 12AWG
• Maximum Wire Size AWG 10AWG
• Stud Size M6
• Sleeve Colour Yellow
• Contact Plating Tin
• Contact Material Copper
• Thickness 1mm
• Overall Length 30mm
• Stock code SOLLR40064PCK
• Solarix M6 Insulated Ring Solar PV Terminal Connector Pack of 4
• Insulation Material Yellow PVC
• Inner Ring Diameter 6.35mm
• Outer Ring Diameter 10mm
• Minimum Wire Size mm² 2.5mm²
• Maximum Wire Size mm² 6mm²
• Minimum Wire Size AWG 12AWG
• Maximum Wire Size AWG 10AWG
• Stud Size M6
• Sleeve Colour Yellow
• Contact Plating Tin
• Contact Material Copper
• Thickness 1mm
• Overall Length 30mm
NOTE: Items are only transferred from the warehouse and shipped for delivery upon order confirmation and payment. Items deemed with incorrect listing prices will be cancelled and refunded immediately.
