Description

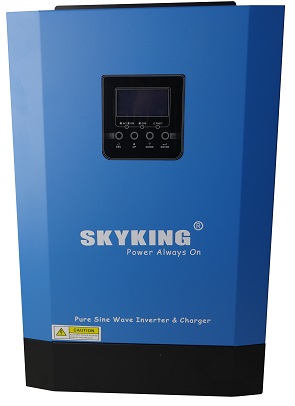

Solarix Skyking 7KVA 48V Hybrid Inverter – 7KW 48V SkyKing Hybrid Off-Grid Inverter, is integrated with a 80A MPPT solar charge controller, Retail Box , No warranty
Product Overview
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting Configurable AC/Solar Charger priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection Smart battery charger design for optimized battery performance
• Cold start function
Specifications
• Stock Code: SKV7KVA
• Description: Solarix Skyking 7KVA 48V Hybrid Inverter
• Colour: Blue & Black
• Operating temperature range: 0-55°C
Inverter Mode
• Rated Power: 7000VA(5500W)
• DC INPUT: 48VDC, 127A
• AC OutputL: 230VAC, 550/60Hz, 23,90A, 1
• AC Input: 230VAC, 50/60Hz, 38.5A, 1
• DC Output: 54VDC
• Max.80A, Default 30A
• AC Output: 230VAC, 50/60Hz, 23.9A, 1
Charger Solar Mode:
• Rated Power: 6000W
• MAx Charger: 110A
• Nominal Operation Voltage: 240VDC
• Max Solar Voltage (VOC): 500VDC
• MPPT Voltage range: 120 – 450VDC
• Ingress Protection: IP21
• Protective class: class 1
