Description
TP Link 8 Port Auto Negotiation Switch- 10/ 100 Mbps , RJ45 Ports – Supports Auto MDI/MDIX, Green Ethernet Technology Saves Power Consumption, IEEE 802.3x Flow Control Provides Reliable Data Transfer, Plastic Case, Desktop Design, Plug And Play, No Configuration Required, Retail Box, 1 Year Limited Warranty
Product Overview
Product Overview

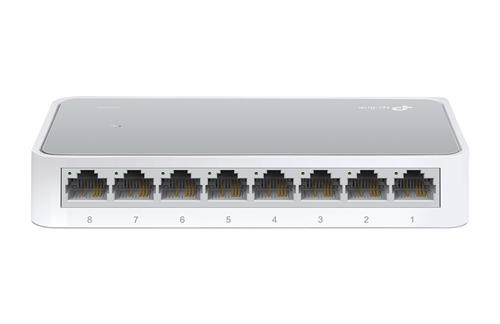

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.
Features
High Performance
•TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
Easy to Use
•The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
•Product code:TL-SF1008D
•Description: TP-Link 8port 10/100Mbps auto-negotiation RJ45 ports
•Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
•Interface: 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
•Fan Quantity Fanless
•Power Supply External Power Adapter(Output: 5.0VDC / 0.6A)
•External Power Supply 100-240VAC, 50/60Hz
•Buffer Size 768Kb
•Data Rates 10/100Mbps at Half Duplex ;
•20/200Mbps at Full Duplex
•LED Indicator Power, 1, 2, 3, 4, 5, 6, 7, 8
•Dimensions ( W x D x H ) 5.3*3.1*0.9 in. (134.5*79*22.5mm)
•Max Power Consumption 2.05W(220V/50Hz)
•Max Heat Dissipation 6.99BTU/h
•Transfer Method Store and Forward
•Advanced Functions Green Technology
•802.3X Flow Control, Back Pressure
